French Drain Installation: Intercepting Groundwater Before It Reaches Your Foundation
A French drain intercepts groundwater and surface runoff before it can saturate the soil around your foundation. Properly installed and sized for Middle Tennessee's rainfall, a French drain is one of the most effective tools in the waterproofing toolkit.
On cost: $3,000 to $12,000 depending on drain length, depth, discharge requirements, and site conditions
Overview
French Drain Installation
French drains are subsurface drainage systems that intercept and redirect groundwater, surface runoff, and laterally migrating soil moisture away from a foundation or problem area. A trench filled with clean stone and a perforated drain pipe captures water moving through the soil and carries it by gravity to a safe discharge point. Ground Up Foundation Repair installs French drains as perimeter foundation drains, yard drainage solutions, and hillside intercept drains for Middle Tennessee properties where groundwater movement or surface drainage is contributing to basement moisture, yard flooding, or saturated soil conditions.
A French drain works by creating a path of least resistance through the soil. Water moving through saturated clay or flowing across a slope will naturally migrate toward a gravel trench, which drains far faster than the surrounding native soil. Inside the gravel trench, a perforated pipe collects the water that enters the stone bed and carries it to the discharge point. Properly sized and located, a French drain can intercept groundwater before it reaches the foundation, relieve hydrostatic pressure, the force that built up groundwater exerts against basement walls, and eliminate wet areas in the yard that previously held water after rain events.
Wondering if this is the right fix for what you are seeing? Learn more about the warning signs: Basement Flooding and Basement Water Intrusion . Or browse the full Problem Signs library for basement waterproofing.
Installation Process
How we install french drain installation
Drainage Assessment and Layout
We walk the site to identify water sources, flow paths, and high-saturation areas. We determine the optimal trench location and routing to intercept water before it reaches the problem area, confirm that a gravity outlet is available, and mark the installation path.

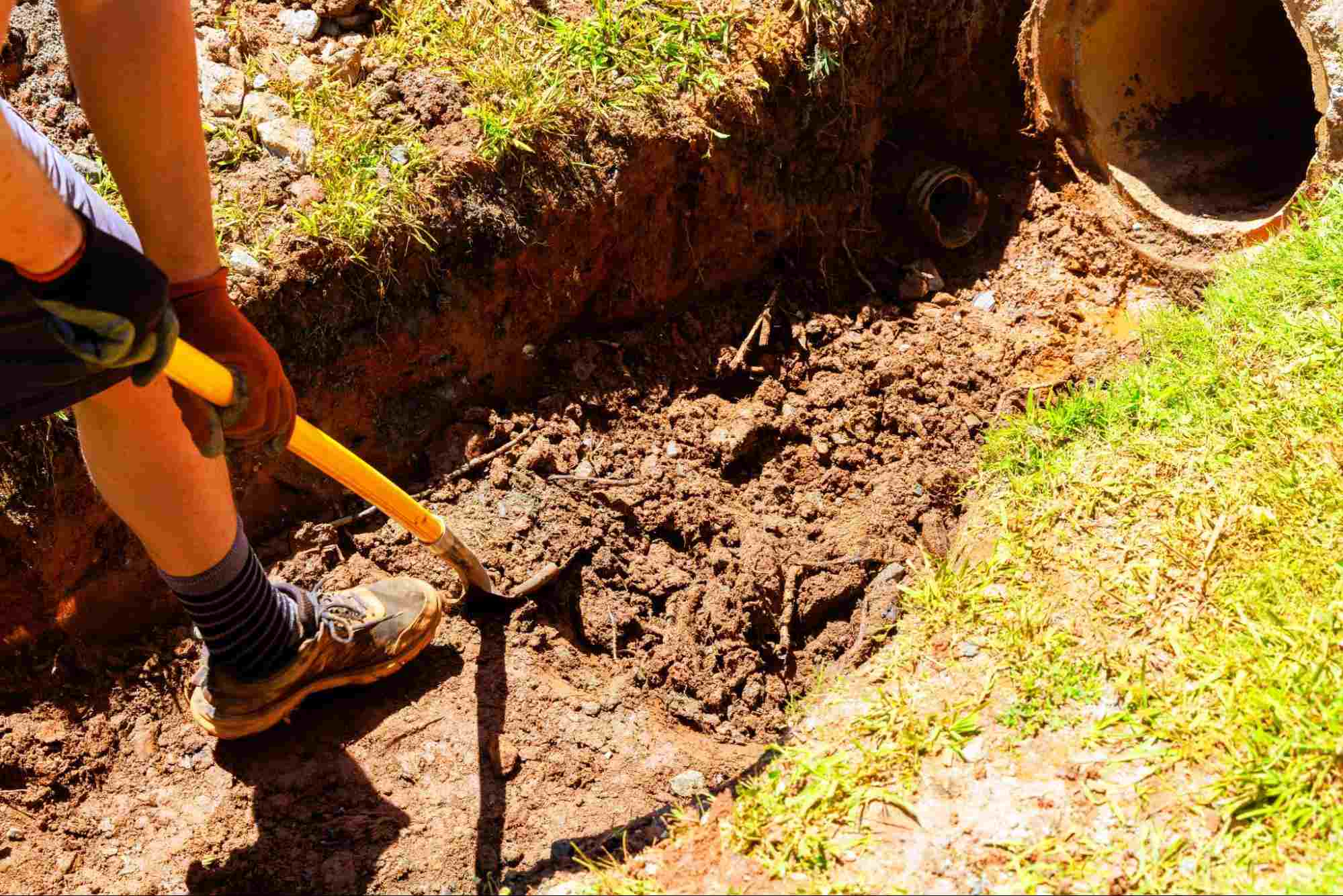

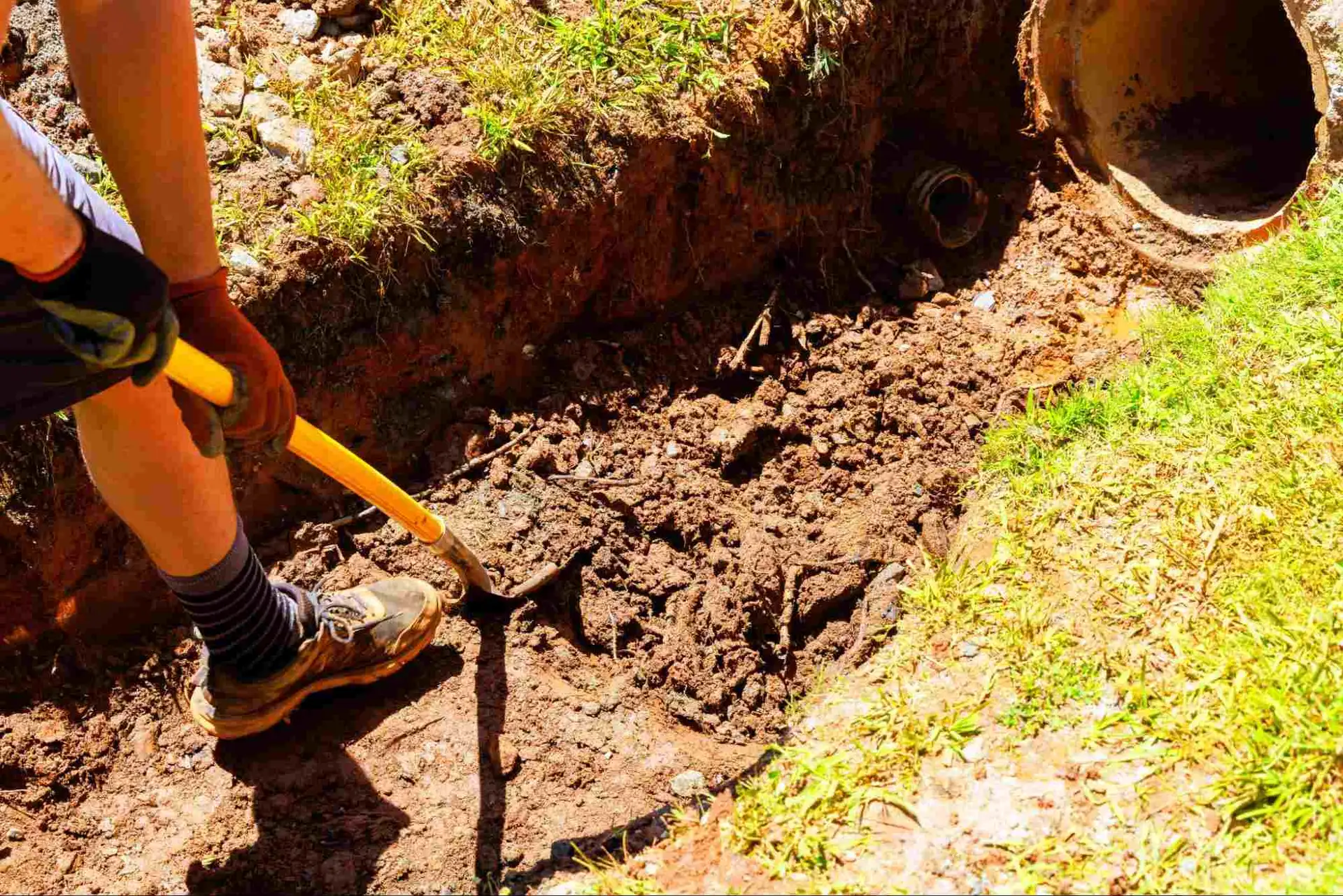

Trenching
We excavate the drainage trench along the planned route at the designed width and depth. Depth is determined by how far below grade the water source is and the slope needed to maintain gravity flow to the outlet. Typical depths range from 18 inches to 4 feet depending on application.
Filter Fabric and Stone Bed Preparation
The trench is lined with a permeable filter fabric to prevent native soil from migrating into the stone bed and clogging the drain over time. A layer of clean, washed gravel is placed at the bottom of the trench to set the pipe at the correct elevation.

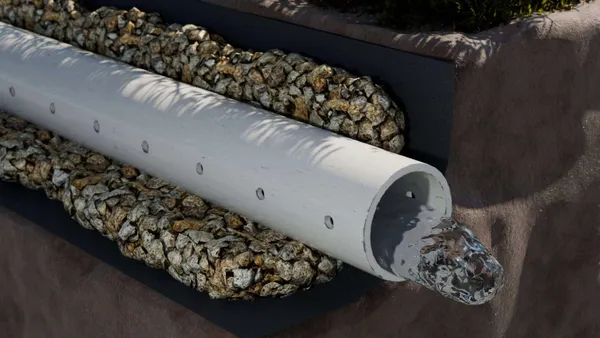

Perforated Pipe Installation
A perforated PVC drain pipe is placed in the stone bed at the correct slope to ensure gravity flow throughout the system. Pipe size is selected based on the drainage volume the system must handle. Cleanout access points are installed at changes in direction and at regular intervals for long runs.
Stone Backfill and Fabric Wrap
The trench is backfilled with clean washed stone to within 6 to 12 inches of the surface. The filter fabric is folded over the top of the stone to create a complete wrap that excludes native soil from entering the stone bed from above.
Topsoil, Turf, and Outlet Restoration
The top of the trench is restored with topsoil and seeded or sodded to match the surrounding area. The outlet, typically a pop-up emitter, daylighting pipe, or connection to a storm drain system, is installed and tested to confirm gravity flow through the full system.
A French drain installed in the right location changes how water moves through your property. Done correctly, it takes pressure off the foundation permanently and solves wet yard problems that years of landscaping band-aids never could.
Why Ground Up
The difference is in the diagnosis
Get several quotes and you'll see a wide range of prices. The gap isn't luck. It's whether the contractor finds the actual cause and stands behind the work.
- In-house certified crews: we never subcontract your repair
- Optional independent third-party engineer review on larger jobs
- Honest three-tier triage: we tell you what can wait, in writing
- Family owned from the same Shelbyville Highway address since 2009
FAQ
French Drain Installation questions
French drain and curtain drain refer to the same basic system, a trench with stone and perforated pipe that intercepts groundwater. The term curtain drain is often used specifically when the drain is installed upslope of a structure to intercept hillside groundwater before it reaches the foundation. French drain is the more general term applied to any subsurface drainage trench system.
A properly installed French drain with filter fabric, clean stone, and adequate slope can last 30 to 40 years or more. The main failure mode is silt and root infiltration into the stone bed, which reduces drainage capacity over time. Filter fabric significantly extends service life by preventing soil migration. Cleanout access allows the pipe to be flushed when flow capacity decreases.
Yes. French drains installed without filter fabric, with the wrong stone size, or in soils with very high fine-particle content can silt up over 10 to 15 years. Tree roots are another common clog source. Access points allow the pipe to be hydro-jetted to restore flow. Ground Up uses quality materials and fabric to maximize service life from the start.
A gravity outlet to daylight, where the pipe exits the ground at a point lower than the drain, is the most reliable discharge method and requires no mechanical components. When a gravity outlet is not available due to site topography, a French drain can discharge to a sump basin where a pump handles the final lift. Ground Up designs the discharge for each site based on available grade.
A perimeter French drain at footing depth is one of the most effective tools for reducing hydrostatic pressure against basement walls. Its effectiveness depends on where the water is coming from, lateral groundwater migration and surface runoff respond well to French drain solutions. Flooding caused by a high seasonal water table or rising groundwater requires interior drainage and pumping in addition to exterior drainage.
More Solutions
Other solutions we offer
Downspout Extensions
Your gutters collect a surprising amount of water during a Middle Tennessee rainstorm, a typical roof can shed hundreds of gallons per inch of rainfall. When downspouts discharge that volume at the base of your foundation, the surrounding soil becomes saturated quickly, creating the hydrostatic pressure, the force that saturated soil places against your basement wall, that drives basement moisture and flooding. Ground Up Foundation Repair installs downspout extensions, including surface extensions, flexible rollout models, and underground piped discharge systems, to move roof runoff well away from your structure before it can become a basement problem.
Exterior Waterproofing Membranes
Exterior waterproofing membranes are applied directly to the outer face of the foundation wall after excavation exposes the wall from footing to grade. The membrane forms a continuous moisture barrier across the entire exterior wall surface, sealing cracks and preventing water under hydrostatic pressure, the force that saturated soil exerts as it presses against the wall from outside, from migrating through the concrete. When combined with a foundation drainage board and footing-level drain tile, exterior waterproofing provides the most complete protection available for a basement. Ground Up Foundation Repair installs exterior waterproofing as a standalone system and as part of combined interior-exterior waterproofing packages for severe water intrusion situations.
Grading & Yard Sloping
The ground immediately surrounding your home should slope away from the foundation at a minimum grade of 6 inches over the first 10 feet. When that slope is flat, reversed, or has settled unevenly over time, rainwater and snowmelt drain toward your basement instead of away from it. Ground Up Foundation Repair corrects improper yard grading across Middle Tennessee by adding and reshaping soil to establish the right slope profile, one of the most cost-effective steps a homeowner can take to prevent basement moisture problems.
Interior Drainage Systems
An interior basement drainage system is the most reliable long-term solution for chronic basement water intrusion in Middle Tennessee homes. Rather than attempting to stop water at the exterior, an interior system accepts that some water will reach the foundation and channels it away harmlessly before it can cause damage. Ground Up Foundation Repair installs complete interior drainage systems including perimeter channels, sump basins, and primary and battery backup pumps sized to handle the water volumes common during Middle Tennessee storm events.
Vapor Barriers
Basement vapor barriers are heavy-duty polyethylene or reinforced sheeting systems installed on foundation walls and floors to prevent moisture vapor from migrating through concrete into the living space. In Middle Tennessee's humid climate, unsaturated concrete walls and floors can transmit significant moisture even when no active seepage is present, enough to sustain mold growth, warp wood, and keep relative humidity at damaging levels. Ground Up Foundation Repair installs vapor barriers as standalone moisture control systems or as part of a complete interior drainage and waterproofing package.
Yard Drainage Solutions
When your yard fails to drain after rain, water pools against your foundation and soaks into the surrounding soil. Over time, that sustained hydrostatic pressure, the force of that saturated soil pressing against your foundation walls, forces moisture through basement walls and floors, leading to flooding, mold, and structural damage. Ground Up Foundation Repair installs comprehensive yard drainage systems across Middle Tennessee, including catch basins, channel drains, pop-up emitters, and underground discharge lines, engineered to capture surface runoff and route it safely away from your home.
