Diagonal Foundation Cracks: Settlement's Most Common Signature

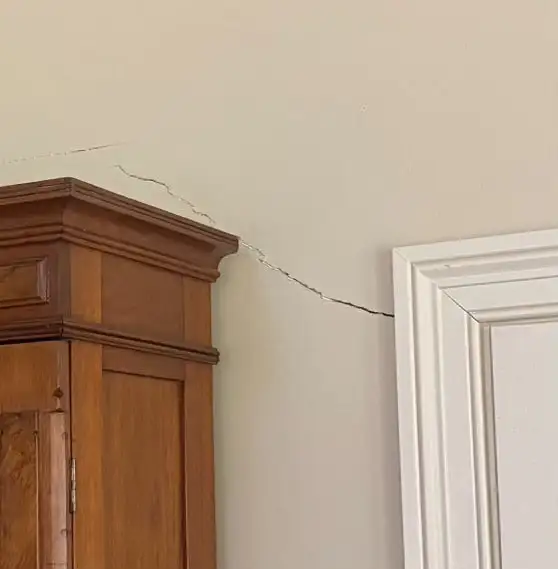

45-degree cracks at corners of windows, doors, and walls are one of the most reliable visual indicators of differential foundation movement.
Let's take the first step toward a stable home.
A licensed local inspector will visit your property, walk you through every finding, and send a written estimate — no cost, no pressure.
- ✓ Licensed & Insured
- ✓ Lifetime Warranty
- ✓ Free On-Site Inspections
Diagonal cracks — running at roughly 45 degrees from the corners of door and window openings, or diagonally across a concrete or masonry foundation wall — are the structural result of differential settlement: one part of the foundation moving more than an adjacent part. The crack forms where the stressed material finally yields to the racking force. In Middle Tennessee's clay soil environment, these cracks typically first appear in spring after a wet season or in late summer after an extended drought.
Common Causes
- Differential clay soil shrinkage: Middle Tennessee's clay soils don't shrink uniformly. Areas with different sun exposure, tree coverage, or drainage patterns dry at different rates, causing parts of a foundation to settle at different speeds and generating the differential movement that creates diagonal cracks.
- Corner settlement: Foundation corners bear the concentrated loads of intersecting walls and are also the points most exposed to moisture variation at the perimeter. Corners that sink independently of the adjacent wall sections produce the classic 45-degree crack radiating from the corner window or door.
- Inadequate soil compaction below footings: Many Middle Tennessee homes built on fill soils have footings bearing on material that was not adequately compacted. This fill compresses under structural load over years, causing localized settlement and the diagonal cracking pattern that follows.
- Tree root extraction near footings: Large tree roots near the perimeter foundation extract moisture from the clay, causing localized drying and shrinkage that drops the footing nearest the tree faster than the rest of the foundation.
Crack Characteristics That Indicate Active Movement
Crack width greater than 1/4 inch
Hairline cracks (under 1/16 inch) in a concrete or masonry wall are common and usually cosmetic. Cracks wider than 1/4 inch indicate significant structural displacement and should be evaluated promptly.
Crack is wider at one end than the other
A crack that starts narrow at one end and opens wider toward the other tells you the direction and amount of differential movement. The wide end points toward the part that has moved more.
Crack has been patched before and has re-opened
A diagonal crack that keeps returning after patching is a moving crack — the underlying settlement is still active. Patching without addressing the foundation movement is a temporary cosmetic fix only.
Crack accompanied by door or floor movement
When a diagonal crack at a door corner appears at the same time the door begins sticking or the floor begins to slope in that zone, it confirms the crack is part of a broader settlement pattern.
"Diagonal cracks don't always mean a crisis — but they always mean something moved. Our job is to determine whether that movement is old and stable or current and progressing. That distinction drives everything about how we respond."
Recommended Solutions
FAQ
Frequently Asked Questions
Do all diagonal cracks mean the foundation is failing?
No. Hairline diagonal cracks at door and window corners are extremely common in Middle Tennessee homes and often represent historic settlement that stabilized years ago. The key questions are: Is the crack actively growing? Is it wider than 1/4 inch? Are there accompanying symptoms (sticking doors, sloping floors, new cracks)? If any of those answers are yes, an inspection is warranted.
How do I know if my crack is growing?
Mark the crack ends with a pencil line and date it. Check again in 30 to 60 days. You can also mark the crack width at its widest point and monitor that. If the crack end has extended past your pencil mark or the width has increased, the movement is active. Another method: tape a piece of paper across the crack — if the crack continues, the paper will tear.
Can a diagonal crack be repaired without fixing the foundation?
The crack can be sealed with epoxy injection, which restores structural continuity and watertightness to the wall. But if the underlying settlement that caused the crack hasn't been addressed, the crack will re-open — either in the same location or an adjacent one. For cosmetic cracks in stable walls, crack injection alone is appropriate. For cracks from active settlement, pier work comes first, then crack repair.
Are diagonal cracks in brick veneer the same concern as cracks in foundation walls?
Not necessarily. Brick veneer is a non-structural cladding — diagonal stair-step cracks in brick veneer usually reflect the same underlying foundation movement, but the veneer itself moving doesn't mean the structural wall behind it has moved the same amount. We evaluate both the veneer pattern and the structural foundation condition during the inspection.
