Crawl Space Vapor Barrier Installation in Middle Tennessee
A sealed crawl space vapor barrier covers the soil under your home, which gives off moisture all year in an open crawl space. It also creates the closed space a dehumidifier needs to keep humidity under control.
On cost: $2,500 to $8,000+ for vapor barrier installation depending on crawl space square footage, access conditions, and whether vent sealing and a dehumidifier are included
Overview
Crawl Space Vapor Barrier Installation

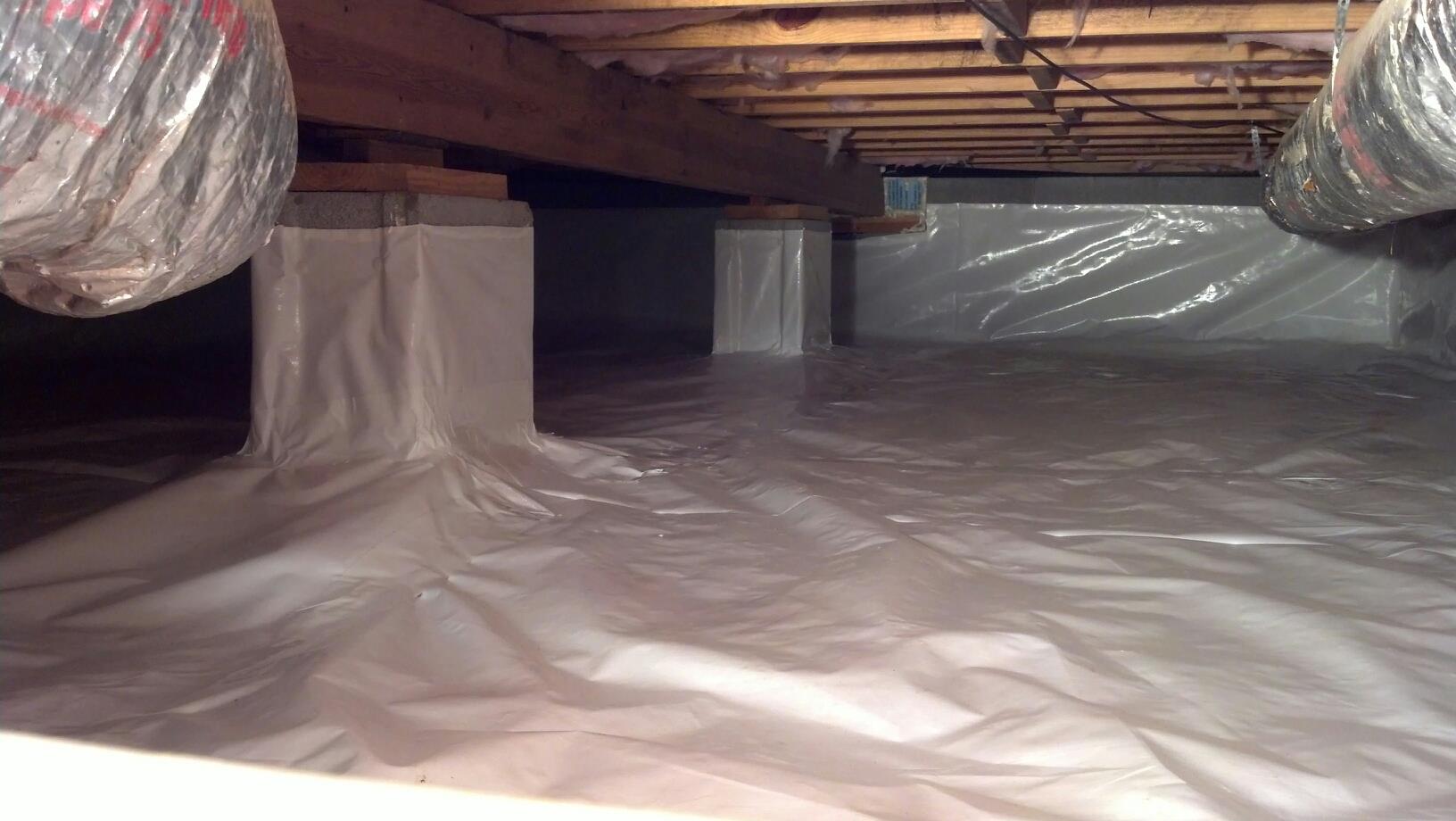

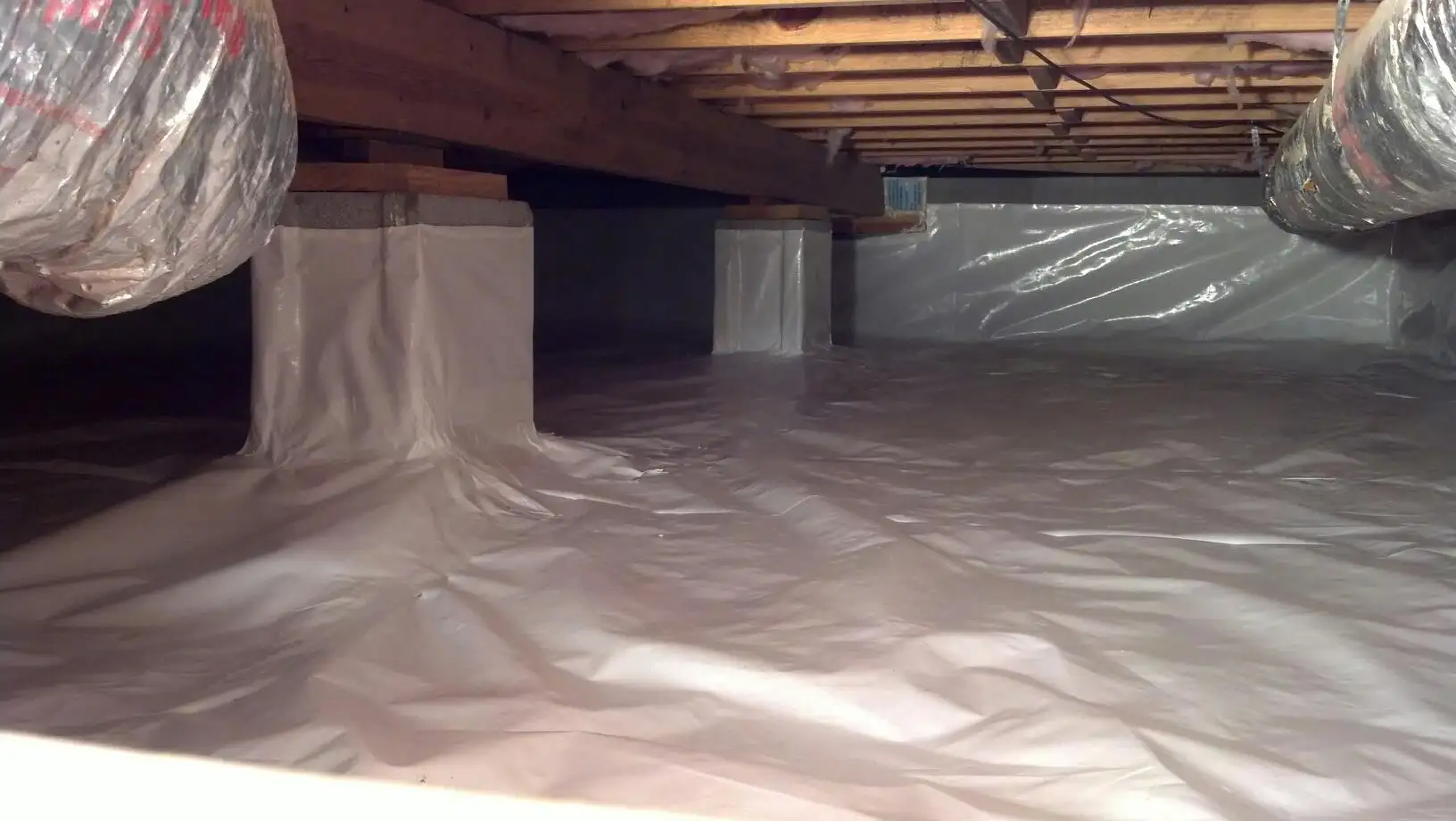

A crawl space vapor barrier is a heavy, reinforced plastic liner that covers the ground under your home. It is the central part of a full crawl space encapsulation system. The soil in an open crawl space gives off moisture vapor all the time, whatever the weather is doing above ground. In Middle Tennessee, vented crawl spaces often reach 80 to 90 percent relative humidity in summer. At those levels, wood framing can absorb enough moisture to support mold, which can grow once wood reaches about 20 percent moisture content. A vapor barrier covers the whole crawl space floor, runs up the foundation walls, and wraps around piers. Seams are overlapped and taped, openings around pipes and supports are sealed, and the top edge is fastened and sealed to the wall. With the foundation vents sealed and a dehumidifier running, the crawl space becomes a closed space where humidity can be controlled through the year.
Ground Up Foundation Repair installs the vapor barrier as the first layer of a full encapsulation. We clear debris from the crawl space and deal with any standing water or drainage problem before the liner goes down, because a liner laid over an active water problem can trap that water underneath it. The liner is rolled out across the floor in overlapping sections, and every overlap is taped along its full length. It then runs up the inside face of each foundation wall, where the top edge is fastened with masonry anchors and sealed. Piers are wrapped one at a time and taped to the floor liner, and every pipe, drain, and support that passes through the liner is cut around and sealed. When the liner is complete, the foundation vents are sealed and a dehumidifier sized for the crawl space is installed to control the humidity in the now closed space. Our own certified crews do this work on every job.
Wondering if this is the right fix for what you are seeing? Learn more about the warning signs: High Humidity in the Crawl Space and Standing Water in the Crawl Space and Mold and Mildew in the Crawl Space . Or browse the full Problem Signs library for crawl space encapsulation.
Installation Process
How we install crawl space vapor barrier installation
Crawl Space Inspection and Preparation
We inspect the crawl space and note what we find: mold, damaged insulation, standing water, drainage problems, and the condition of any old liner. Standing water is removed and drainage problems are fixed before the new liner goes down. We also clear debris and sharp objects that could puncture the liner.
Liner Layout and Placement
The liner is rolled out across the crawl space floor in sections, from wall to wall. Sections overlap by at least 12 inches at every seam so the whole ground surface is covered with no exposed soil.
Seam Sealing and Pier Wrapping
Every seam overlap is taped along its full length. Each pier or column is wrapped with its own piece of liner, and that piece is taped to the floor liner at the base so the barrier stays continuous around everything that passes through it.
Wall Attachment and Perimeter Sealing
The liner runs up the inside face of the foundation wall and is fastened with masonry anchors. The top edge is sealed to the wall to keep air and moisture from getting in above the liner. Every pipe, conduit, and support that passes through the liner is cut around and sealed.
Vent Sealing and Dehumidifier Installation
Foundation vents are sealed from the inside. A dehumidifier sized for the crawl space and for Middle Tennessee summer humidity is installed where it can be reached for service, with a drain line that carries the water it collects to a sump basin or outside. We set it to the target humidity and test that it runs.
The vapor barrier is the first thing we install because it eliminates the largest single moisture source: the soil. Everything else in the system, the dehumidifier, the vent seals, works better and more efficiently once the ground is covered and sealed. Without the barrier, you are trying to dehumidify outdoors.
Why Ground Up
The difference is in the diagnosis
Get several quotes and you'll see a wide range of prices. The gap isn't luck. It's whether the contractor finds the actual cause and stands behind the work.
- In-house certified crews: we never subcontract your repair
- Optional independent third-party engineer review on larger jobs
- Honest three-tier triage: we tell you what can wait, in writing
- Family owned from the same Shelbyville Highway address since 2009
FAQ
Crawl Space Vapor Barrier Installation questions
It depends on what is causing the moisture, and an inspection is the way to know. A vapor barrier covers the soil, which is a steady source of moisture in an open crawl space. A dehumidifier removes moisture from the air, but it works best in a crawl space that is closed off, with the soil covered and the vents sealed. In many Middle Tennessee crawl spaces the answer is both, along with a fix for any standing water first.
A sealed encapsulation uses a heavy, reinforced liner rather than thin plastic sheeting, because thin sheeting can tear when people crawl over it and is hard to seal at seams and walls. The right liner for your crawl space depends on how it is used and how often it is entered for service, and we confirm it at your free inspection.
Yes, in a full encapsulation the liner runs up the foundation walls and is sealed there. A liner that covers only the floor leaves the walls open to moisture and lets air in where the wall meets the floor.
A reinforced liner that is installed and sealed correctly is built to last for many years, as long as it is protected from damage. It is worth checking it from time to time for tears from pests, plumbing work, or falling debris. Small tears can usually be repaired with compatible tape without replacing the whole liner. Ground Up backs the liner with a long term warranty against tearing and deterioration, plus a workmanship warranty on the installation.
A homeowner can buy liner and lay it out. What decides how well it works is the sealing: taped seams, a sealed wall attachment, sealed openings around pipes and piers, and sealed vents. A liner with gaps at those points may keep out little more moisture than an open crawl space, and the dehumidifier then has to work much harder.
In a full encapsulation, yes. Sealing the foundation vents is part of the system. Open vents let warm, humid outdoor air into the crawl space, which works against the dehumidifier. Once the crawl space is sealed and the dehumidifier is running, the vents stay closed.
Free guide
Get the free crawl space guide
- Why Middle Tennessee crawl spaces get damp
- A checklist for your crawl space
- What encapsulation includes
Your guide is on its way.
Check your inbox for an email from Ground Up Foundation Repair. If it is not there in a few minutes, check your spam or promotions folder.
More Solutions
Other solutions we offer
Downspout Extensions for Crawl Space Protection
Downspout extensions are one of the simplest steps in crawl space moisture management. When gutters discharge at the foundation through a short downspout, they concentrate the entire roof's drainage directly against the stem wall. Over the course of a Tennessee rainy season, this can mean hundreds of thousands of gallons discharged within feet of the crawl space foundation. This sustained water concentration saturates the soil adjacent to the foundation, raises the local water table, and creates sustained hydrostatic pressure, the steady force that saturated soil places against the stem wall. Extending the downspout discharge to 6 to 10 feet from the foundation significantly reduces this load. For crawl spaces with existing moisture problems, downspout extensions are almost always part of the full moisture management solution alongside drainage systems and encapsulation.
Crawl Space Drainage Systems
A vapor barrier and dehumidifier address moisture vapor rising from the soil and airborne humidity. But when a crawl space has active water intrusion, water physically entering through cracks in foundation walls, through the wall-floor joint, or through low points in the floor, drainage must be added to the encapsulation system. A crawl space drainage system intercepts that intruding water at the perimeter, channels it to a sump basin, and removes it automatically before it can pool on the vapor barrier or create a high-humidity environment that challenges the dehumidifier.
Crawl Space Sump Pumps
A crawl space sump pump is a submersible pump installed in a basin at the lowest point of the crawl space floor. When water accumulates in the basin, routed there by a perimeter drainage channel or from direct accumulation in the low area, the pump activates automatically and discharges water through a pipe to a safe discharge point outside the foundation. In Middle Tennessee, where heavy rain events and seasonal water table elevation regularly affect crawl spaces, a properly sized sump pump with battery backup is a fundamental component of any crawl space with active water entry. Before encapsulation can be installed in a crawl space with water intrusion, a sump pump and drainage system must be in place and the space must be confirmed dry.
Surface Drains for Crawl Space Protection
Surface drains are an exterior drainage solution that captures rainwater and surface runoff at specific collection points on the property and directs it away from the home through underground piping. Unlike interior crawl space drainage that manages water after it has entered the structure, surface drains address water before it reaches the foundation. In Middle Tennessee, where intense summer storms and clay soils that resist infiltration create rapid surface runoff, surface drains at strategic yard locations, along driveways, and at the foundation perimeter significantly reduce the water volume that migrates toward the crawl space. When paired with a complete encapsulation system, surface drains reduce the load on interior drainage and help maintain the dry environment that encapsulation requires.
Crawl Space Dehumidifiers
A crawl space dehumidifier is a commercial-grade humidity control unit installed inside the crawl space to actively remove moisture from the enclosed air. In a sealed or encapsulated crawl space, residual moisture from soil not fully covered by the vapor barrier, from HVAC condensation, or from air that enters during maintenance access can still accumulate and cause problems if not actively managed. A dehumidifier sized for the crawl space volume removes this residual moisture continuously and maintains relative humidity below 55 to 60 percent, the threshold below which mold cannot establish on wood surfaces.
Crawl Space Insulation Removal
Floor insulation in an unencapsulated Middle Tennessee crawl space absorbs ground moisture over time. Once fiberglass is damp it stops insulating, sags out of the joist bays, and becomes a reservoir that holds water against the subfloor and framing. Pest activity accelerates the process, and in many older homes the batts are also contaminated with rodent waste. Removing that material is a necessary step before any moisture control work, and on its own it eliminates a significant source of mold growth and odor beneath the home. Ground Up performs insulation removal only. We do not install new insulation and we do not offer insulation replacement.
