A Failed Crawl Space Post Puts Every Floor Above It at Risk

What Crawl Space Posts Do and Why They Fail

Crawl space support posts, also called lally columns or support columns, are the vertical members that carry mid-span beam load down to a footing or concrete pad on the crawl space floor. Beams span between foundation walls, and on longer spans, posts provide the mid-span support that keeps the beam from deflecting under load. Without that support, the beam sags, the joists above sag with it, and floors above the affected span become noticeably soft, sloped, or bouncy.

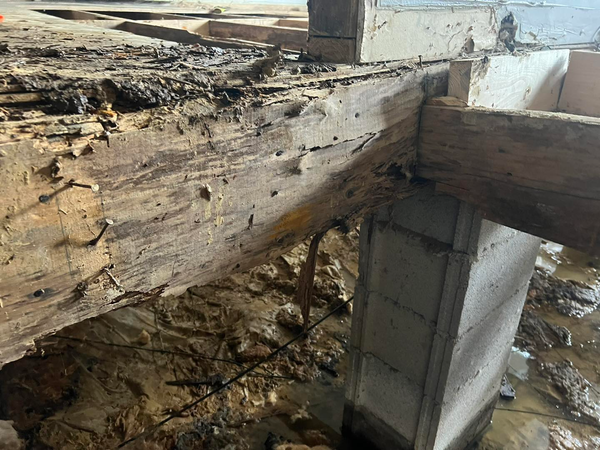

Wood posts in crawl spaces are particularly vulnerable to failure because they sit in an environment with persistent moisture, limited air circulation, and often direct or near-direct contact with the concrete crawl space floor. The end grain of a wood post absorbs moisture readily, and that moisture creates ideal conditions for fungal decay. A post that looks sound from above may be hollow at the base. Settlement of the concrete pad beneath a post is another common failure mode, as the pad shifts or sinks in Nashville's expansive clay soils, the post loses its bearing elevation and the beam above begins to drop.

Signs Your Crawl Space Posts May Be Failing

• Sagging or sloping floors: Floors that have noticeably dropped in the center of a room often indicate a mid-span post has failed or settled
• Bouncy or soft floor areas: Loss of mid-span support increases beam and joist deflection under foot traffic
• Leaning posts: A post that has shifted out of plumb is no longer providing full vertical load transfer
• Soft or punky post bases: Pressing on the base of a wood post and finding soft, spongy material indicates rot has compromised the member
• Gaps between post and beam: A post that has settled or shortened due to rot may no longer be in contact with the beam above

Replacing Wood Posts with Adjustable Steel Columns

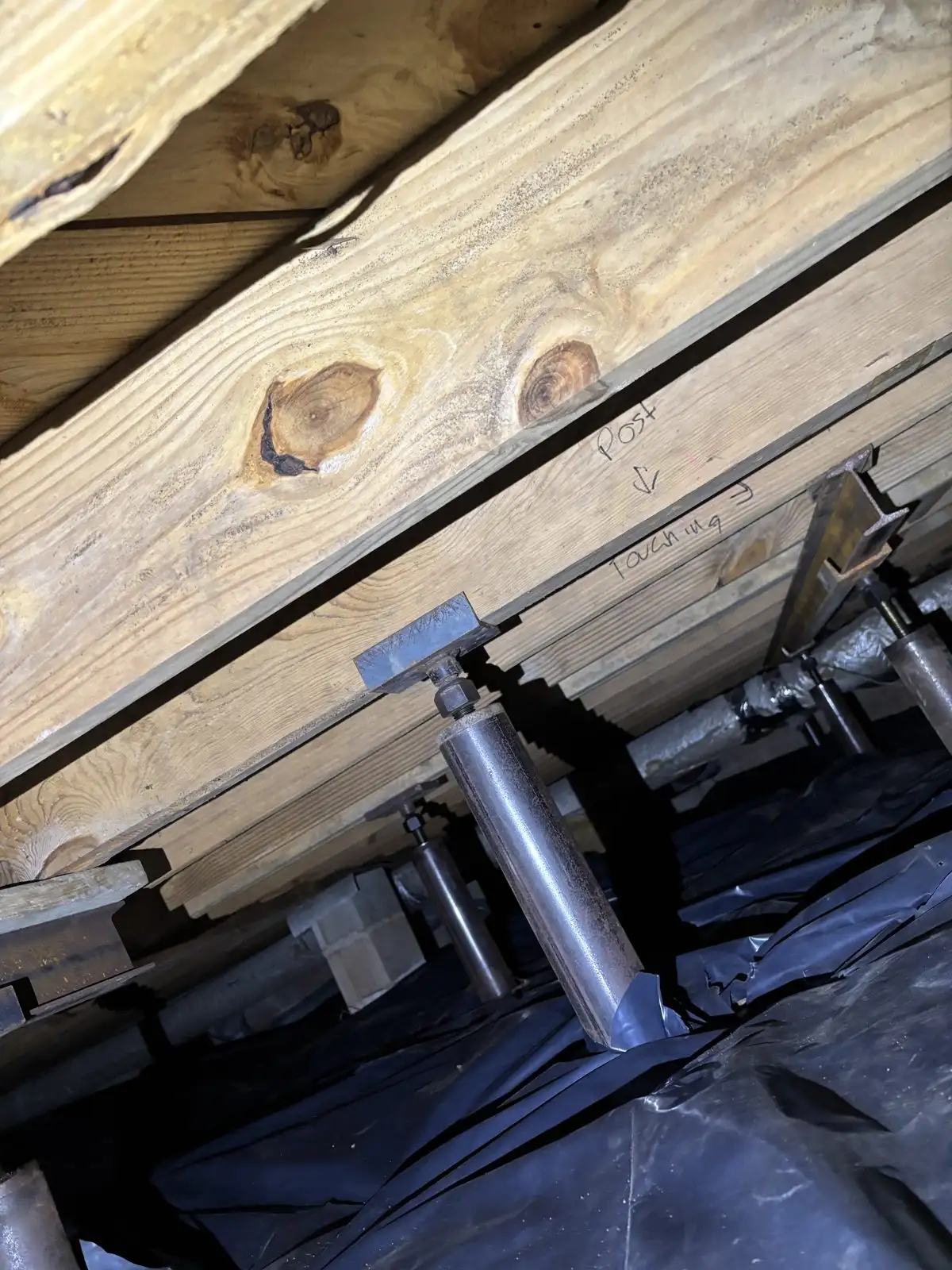

When we replace failed crawl space posts, we install adjustable steel columns rather than returning wood to an environment that already demonstrated it cannot maintain wood long-term. Steel columns do not rot, do not compress, and include an adjustable top mechanism that allows future height corrections if the footing or beam elevation changes over time.

Post replacement requires temporary shoring beneath the beam while the existing post is removed and the new column is installed. We set the new column on a properly sized concrete footing, adjust the top to full bearing contact with the beam, and confirm plumb before removing temporary supports.

If crawl space moisture was the cause of post deterioration, we discuss vapor barrier and drainage solutions as part of the repair plan to protect the new installation. Call us at (615) 880-6449 for a free crawl space inspection.
