Crawl Space Encapsulation

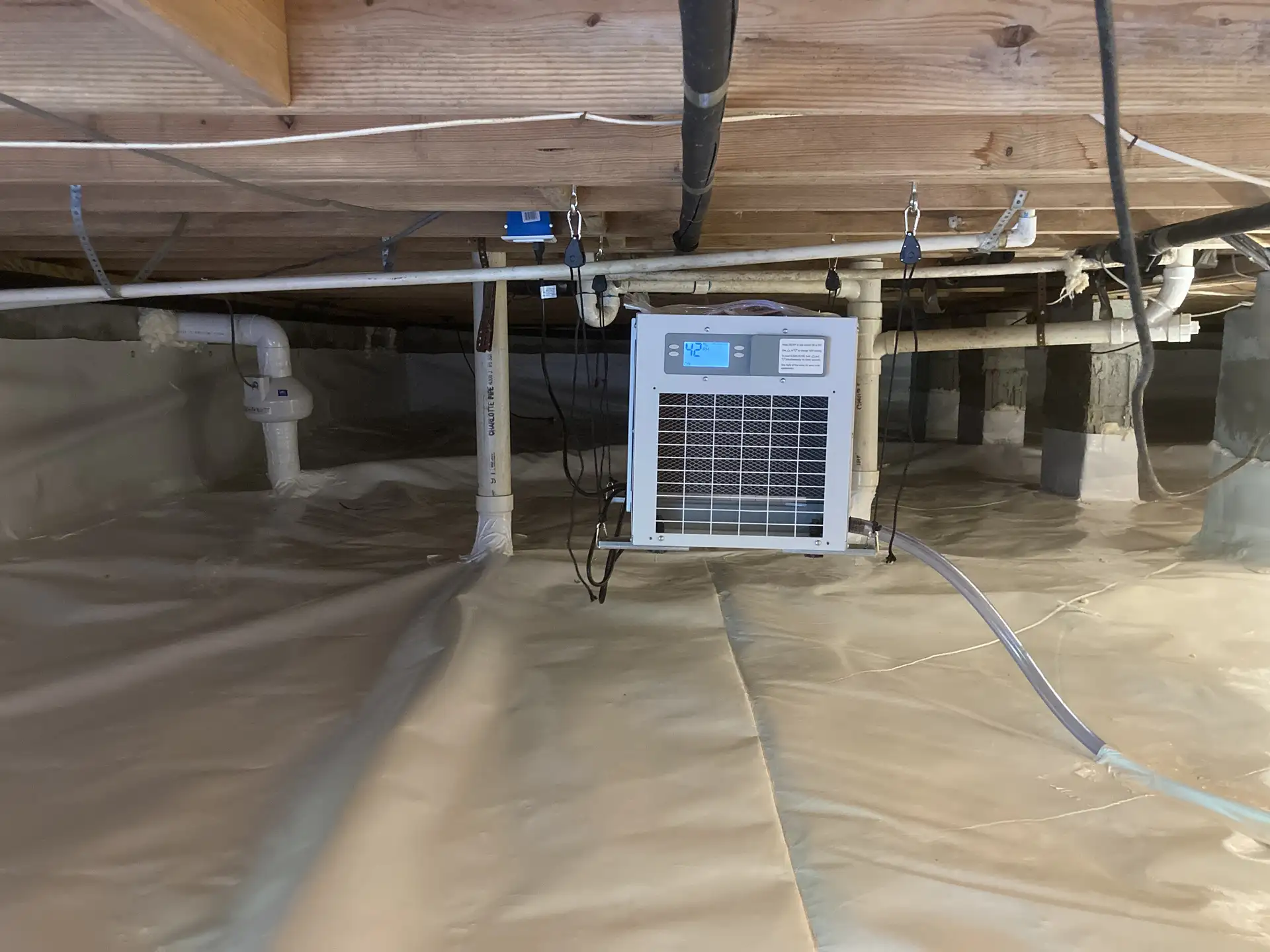

Crawl space moisture control is not a single product. It is a strategy that combines multiple solutions to address the different sources of moisture that affect a crawl space. In Middle Tennessee homes, moisture enters the crawl space as vapor from the soil, as condensation from warm humid outdoor air, as liquid water from rain intrusion, and from plumbing or HVAC leaks. Effective moisture control identifies which of these sources are active in a specific crawl space and applies the appropriate solutions in the correct sequence. The goal is a crawl space that maintains relative humidity below 60 percent throughout the year without continuous intervention.

The crawl space access door is the primary maintenance access point for the crawl space and, in a sealed encapsulated crawl space, the last gap in the moisture and pest barrier. A standard wood-framed or uninsulated access door is a significant thermal and moisture bypass: it allows outdoor air and humidity to enter the sealed crawl space during inspection or maintenance access, and between visits if the door fits poorly. Ground Up installs sealed, insulated crawl space access doors that fit tightly, are weatherstripped, and include a latch that maintains compression against the frame.

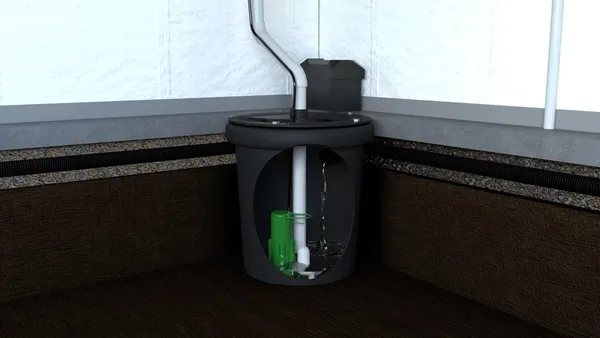

A crawl space drainage system is an interior water management solution installed at the perimeter of the crawl space floor to intercept water that enters through stem walls, rises from the soil, or drains off the crawl space walls. The system channels that water to a sump basin where a pump discharges it away from the home. In Middle Tennessee, where clay soils retain water after heavy rain and seasonal water table elevation is common in many neighborhoods, interior drainage is often the most practical and durable solution for crawl spaces that experience recurring water entry.

Crawl space jacks, also called adjustable support posts or screw jacks, are steel support columns installed in the crawl space to shore up sagging main beams, replace failed wooden support posts, or add supplemental support where beam span is too long for the original framing. In Middle Tennessee homes built on pier-and-beam foundations, the original support posts were often solid wood or short masonry piers. When the wood rots or the masonry piers settle and tip over time, the main beam loses its mid-span support and sags, causing the floors above to deflect.

Crawl space water removal is the process of extracting standing or pooled water from the crawl space floor, assessing the scope of any damage caused, identifying the water source, and developing a plan to prevent recurrence. In Middle Tennessee, crawl space flooding most commonly occurs during and after heavy rain events when drainage systems are overwhelmed, when downspouts discharge near the foundation, or when the seasonal water table rises to the crawl space floor level. Ground Up provides water removal service as part of a comprehensive assessment: we pump out the standing water, identify the entry source, document any damage to framing, insulation, and mechanical systems, and present a repair and prevention plan.

Crawl space waterproofing is the process of preventing or managing water entry into the crawl space to keep framing dry and structurally sound. In Middle Tennessee, crawl spaces deal with three primary water sources: surface water that flows in through foundation vents or over grade during rain events, groundwater that seeps through the perimeter stem walls during extended wet periods, and condensation that forms when humid summer air contacts cooler surfaces inside the crawl space. An effective waterproofing system addresses all three sources, redirecting surface water with grading and downspout extensions, capturing seepage with interior drainage channels, and reducing condensation with vapor barriers and sealed enclosures. Ground Up designs and installs crawl space waterproofing systems sized for each home's specific conditions.
